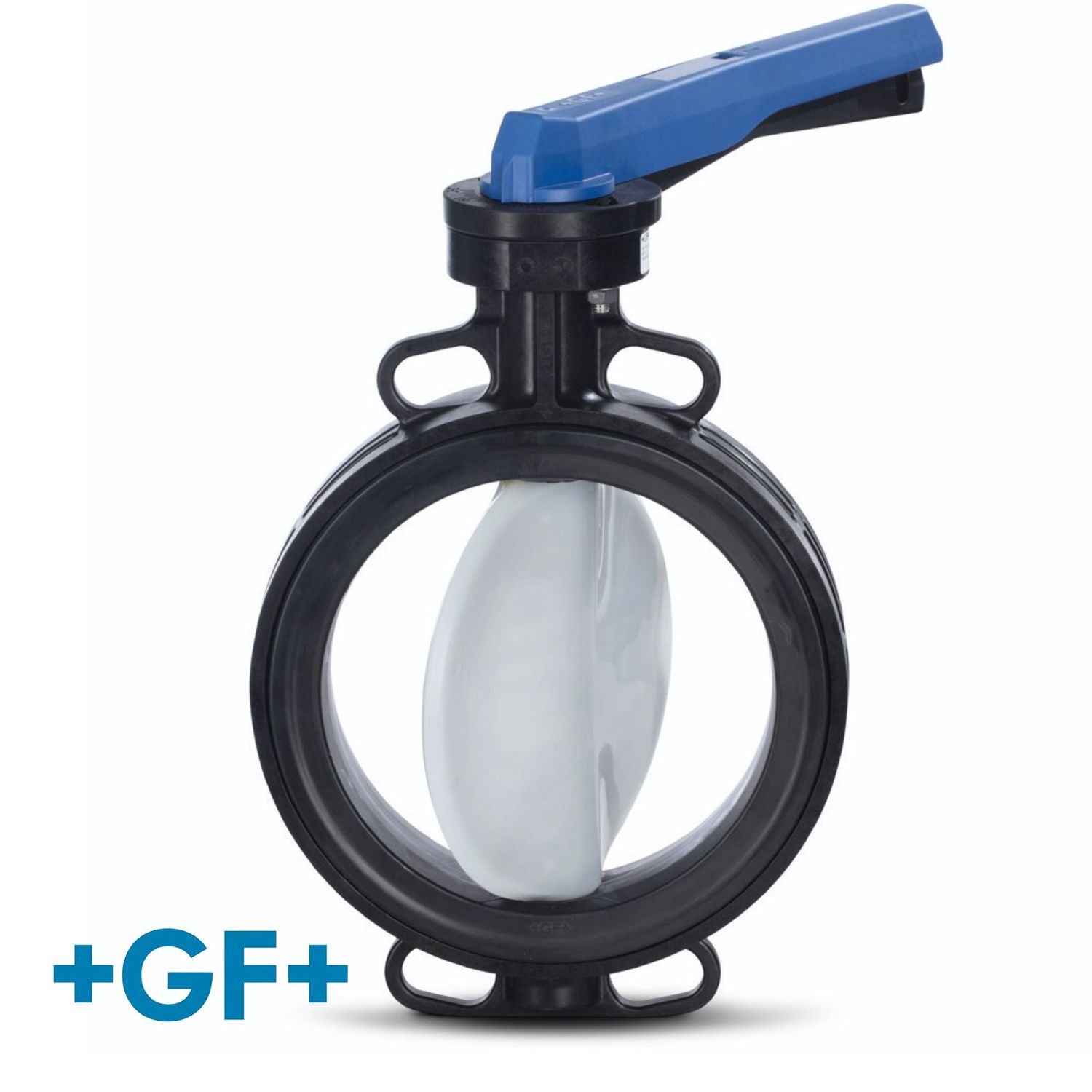

90mm | 3" GF 565 Wafer-Style Valve Manual Lever

Suitable for use with 90mm Metric or 3 " NB pipe in ABS, PVC-U, PVC-C, ecoFIT and PROGEF piping systems.

The Wafer-Style gives the full flexibility for the different installation types. The corrosion-resistant Butterfly Valve 565 from GF comes in the same installation length as its metal counterparts (EN558/ISO5752 short). Therefore, the 565 is just as well suited for replacing old metal valves in existing piping systems as it is for new installations. The outstanding pressure and temperature performance allow the valve to be used in varied applications. Additionally, the superior characteristics of thermoplastic increase the possible installations even further and expand the lifetime compared to metal valves.

Material: PVDF / PA-GF
Pressure Rating: PN16

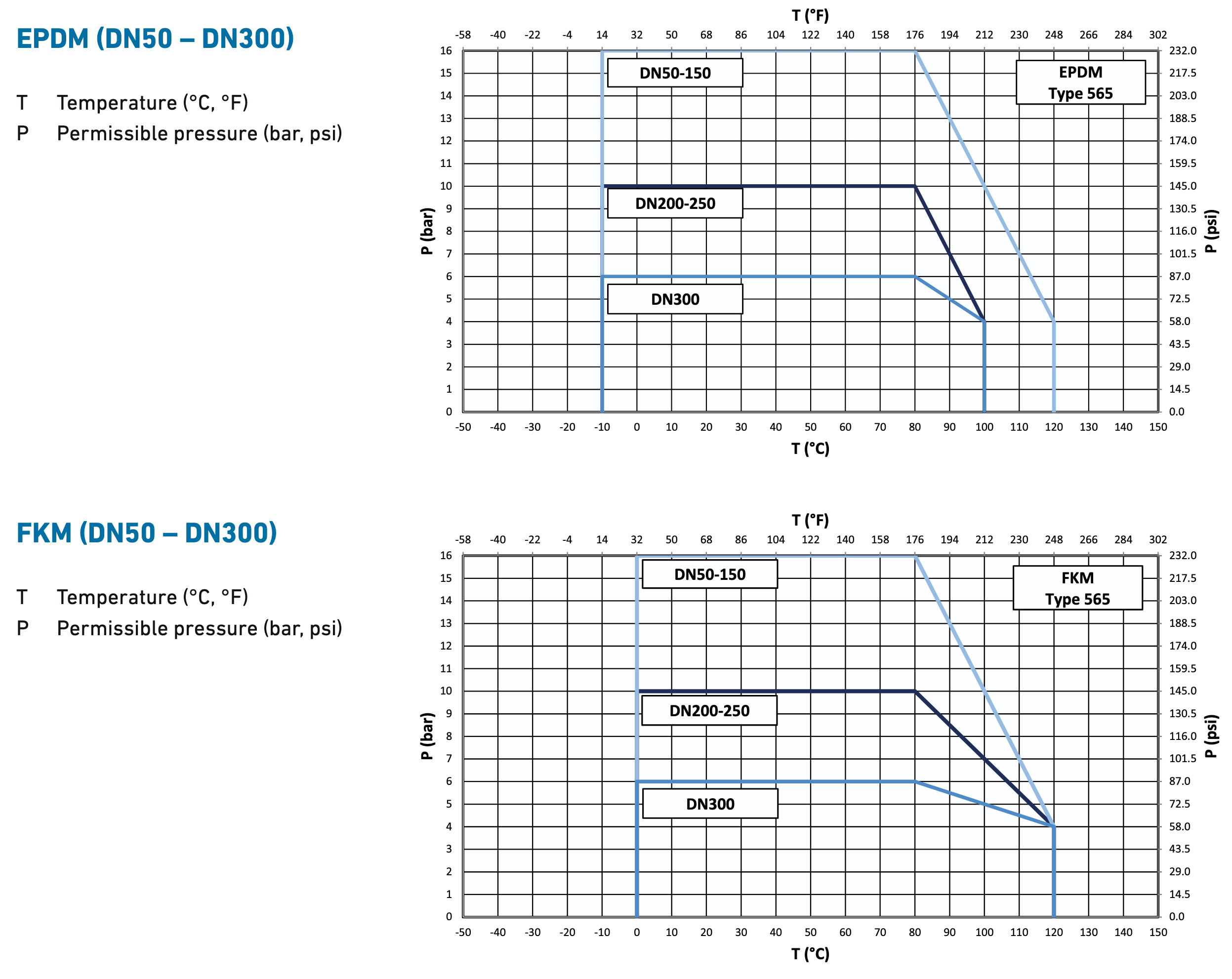

EPDM Operating Temperature: -10°C to +120°C
FKM Operating Temperature: 0°C to +120°C
kv-value (Δp=1 bar): 4020 l/pm

Model:
• Installation length: EN558 row 20, ISO 5752 row 20, API 609 table 2
• Flange standards: ISO 7005 PN10/16, EN 1092 PN10/16, DIN 2501 PN10/16, ANSI/ASME B 16.5 Class 150, BS 1560: 1989 Class 125/150; BS 4504 PN10/16, JIS B 2220 10K, JIS B 2239 10K
• For easy installation and removal
• Lockable ergonomic lever
• Suitable for water and water treatment applications (e.g. sea water, drinking water and industrial water)

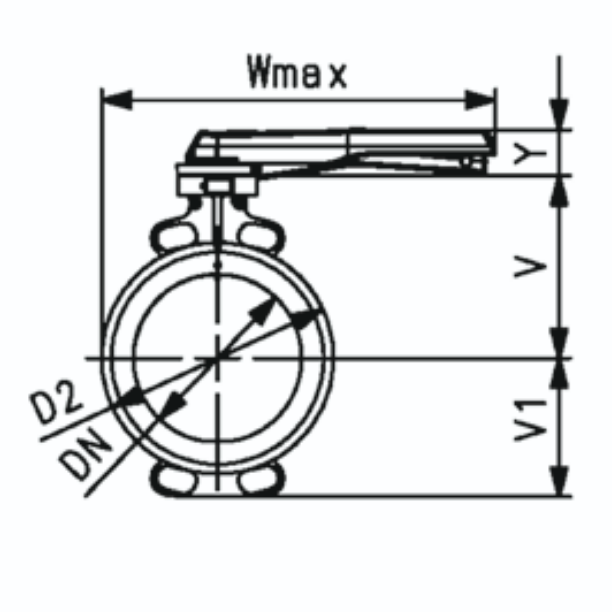

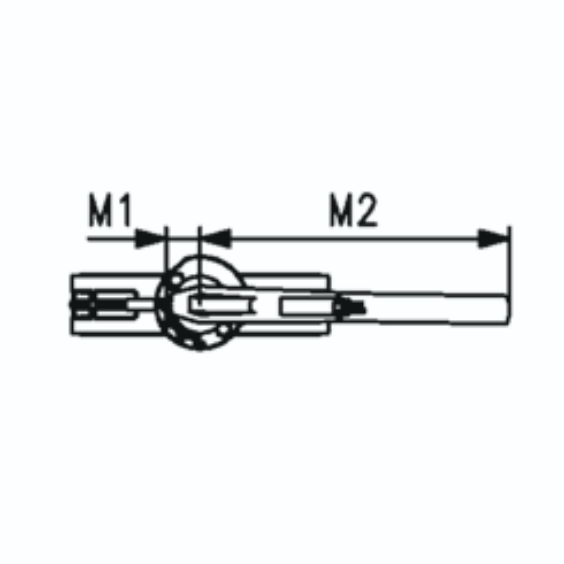

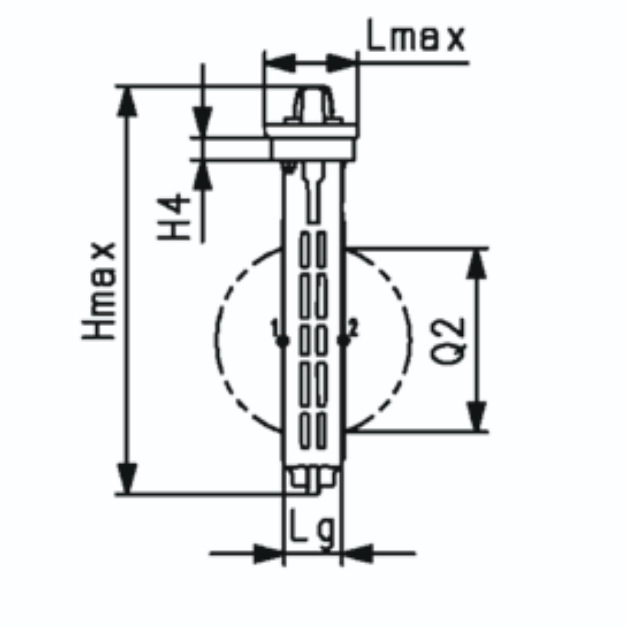

Dimensions

d	D2	Wmax	Hmax	Lmax	H4	V	V1	Lg	M1	M2	Y	Q2	PN	DN
90	138	273.5	288.0	96	23.0	146	89	46.0	35.5	204.5	53.0	63	16	80

All dimensions given in this chart are expressed in millimetres

DOWNLOAD MANUFACTURER DATA SHEET HERE
