75mm | 2 1/2" GF UPVC Butterfly valve type 567

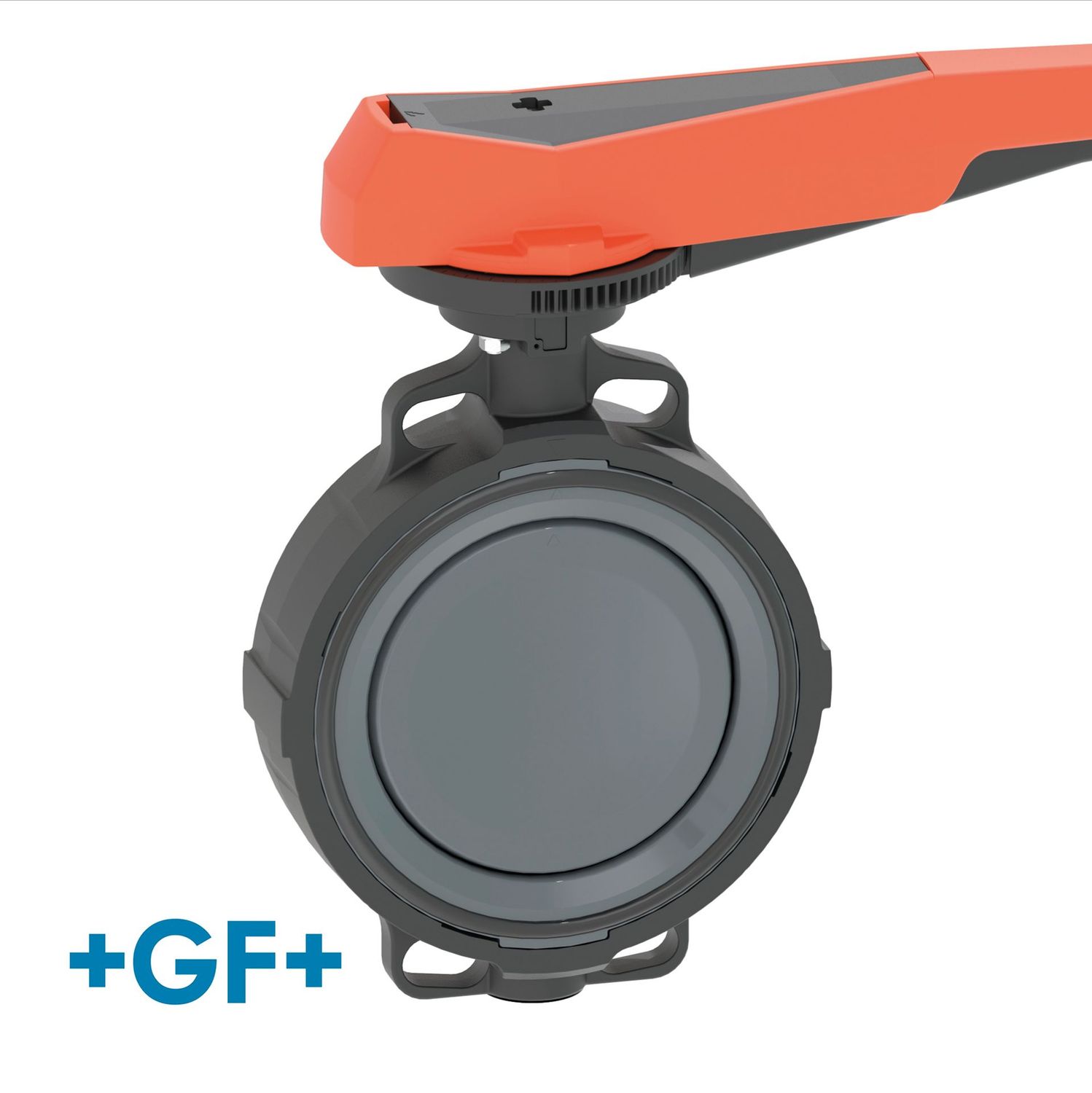

567 model wafer-style butterfly valve in PVC-U, designed for use with Metric 75 mm OD or 2 1/2" NB Imperial pipe work.
Manual hand lever operation with ratchet settings. Available with your choice of EPDM or FKM seals.

This valve is corrosion-resistant and gives reliable control and shut-off. The design makes it suitable to for use in most applications in industrial water treatment, the chemical process industry, chemical trade, galvanization and in power plants. The valve is reliable and very compact in comparison to other valve types. The valve is modular in design, which allows individual system parts to be exchanged or optionally upgraded at any time.

Material: PVC-U
Pressure Rating: PN10
Operating Temperature: 0°C to +60°C
kv-value (Δp=1 bar): 1500 l/pm
Operating Torque: 17Nm (12.5 ft-lbs) @ max operating pressure

• Lower weight than metallic butterfly valves due to use of fiberglass-reinforced plastic as housing material

• High corrosion resistance: all components that come into contact with media are made of plastic

• Lockable ergonomic lever with standard 5° ratchet setting

• Low wear due to double eccentric operating principle: up to 50 % lower actuating torque than with centric valves

• Tightness in the passage and to the outside: double, double-sided, internal axis seal

• Optimized modular components: double internal shaft seal on both sides

• Standard interface conforms to ISO 5211

Dimensions

d	Hmax	Lmax	Wmax	U	V	H4	V1	Lg	D2	Q1	Q2	Y	M1	M2
75	291.8	115.2	271.8	90	139.9	23	85.1	46	115	54	35	66.8	64.7	205.5
