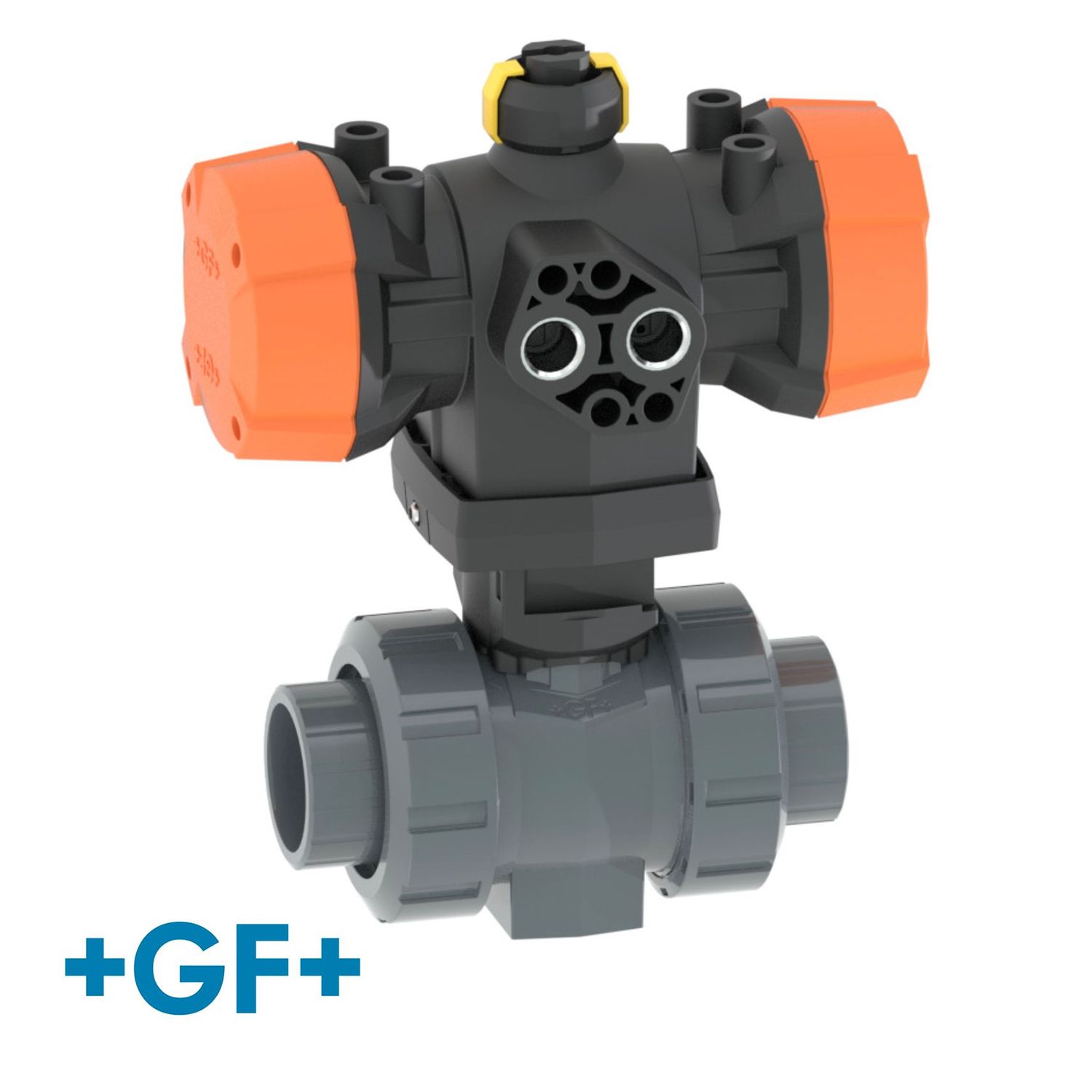

4" PVC-U Pneumatically Actuated 546 Ball Valve EPDM/FKM Seals
£2,135.88
Pre-order
Out of Stock - Pre-ordering available. Ring for lead time.
Product Details
GF air actuated 546 double union ball valve with plain imperial ends for installation to 4" NB PVC-U
pipe.
5.6 Bar Control Pressure
Fail-safe to close
kv-value (Δp=1 bar): 70 l/pm
- Control pressure supply through integrated NAMUR interface according VDI/VDE 3845
- Full plastic solution (actuator housing made of PP-GF)
- Visual position indicator
Dimensions
 |
d | 4" |
| Actuator | PPA80 | |
| B3 | 120mm | |
| B5 | 28.5mm | |
| da2 | 33mm | |
| DE1 | 238mm | |
 |
E | 142mm |
| G | M12 | |
| G1 | M5 | |
| H | 324mm | |
| H2 | 20mm | |
| H4 | 22mm | |
| L | 301mm | |
 |
M | 343mm |
| V1 | 123mm | |
| X5 | 80mm | |
| X6 | 30mm | |
| X7 | 74mm | |
| X10 | 145mm | |
| z | 174mm |
| Lead times: Currently 2 to 6 weeks. Please telephone 0161 241 0553 for a more accurate indication. |
