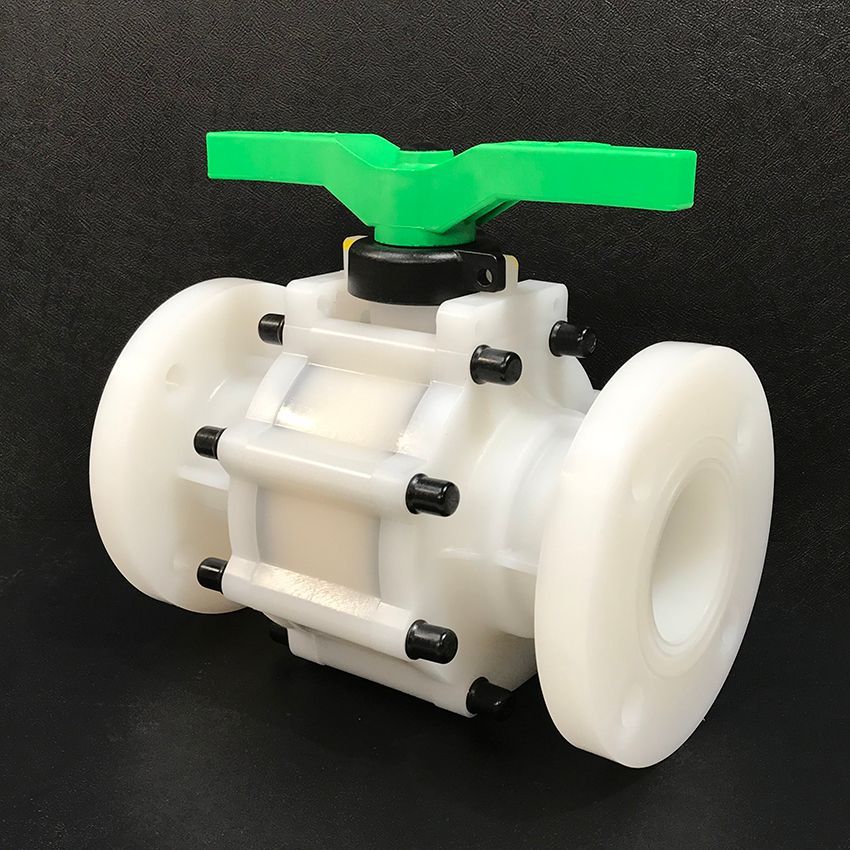

3"- 90mm SAFI Flanged PVDF Ball Valve with FPM Seals
This flanged compact ball valve has a body made from PVDF material and has a 3 piece construction. The valve is constructed with solid integrated moulded flanges for easy installation. Moulded sealing rings on the flange faces help prevent deformation of gaskets and provide optimum sealing performance.
Pressure Rating:
10 Bar
Operating Temperature Range:-20°C to +120°C
Flange Drilling Standards:
PN10/16 or ASA 150

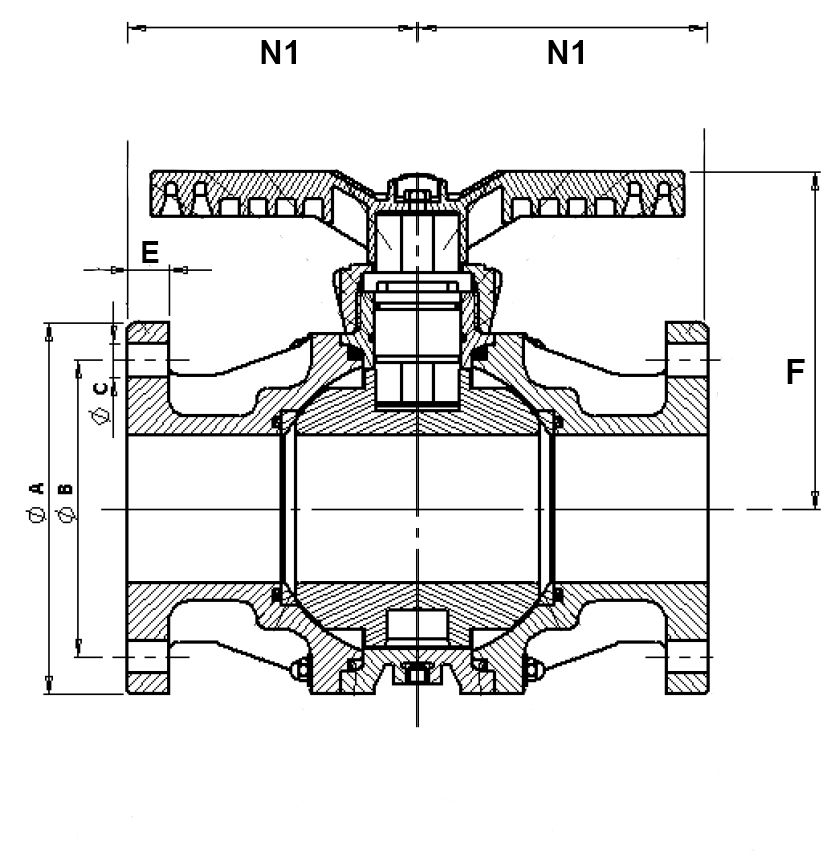

Dimensions
The flange diameter (Dia.A), pitch circle diameter (Dia. B) and bolt hole diameter (Dia. C) of the flange are dependant on your chosen flange standard. All other dimensions are the same regardless of which flange standard is chosen.
| PN10/16 | ASA 150 |  |
 |
|||
| Dia. A | 200mm | 184mm | ||||
| Dia. B | 160mm | 152mm | ||||
| Dia. C | 18mm | 19mm | ||||
| DN | 80 | |||||
| E | 22mm | |||||
| F | 180mm | |||||
| N1 | 155mm | |||||
DOWNLOAD MANUFACTURER DATA SHEET
If you are looking for this valve with any of the options shown in the manufacturer's data sheet, such as with a fitted actuator or locking mechanism. Please telephone 0161 243 0553 to discuss your requirements.
