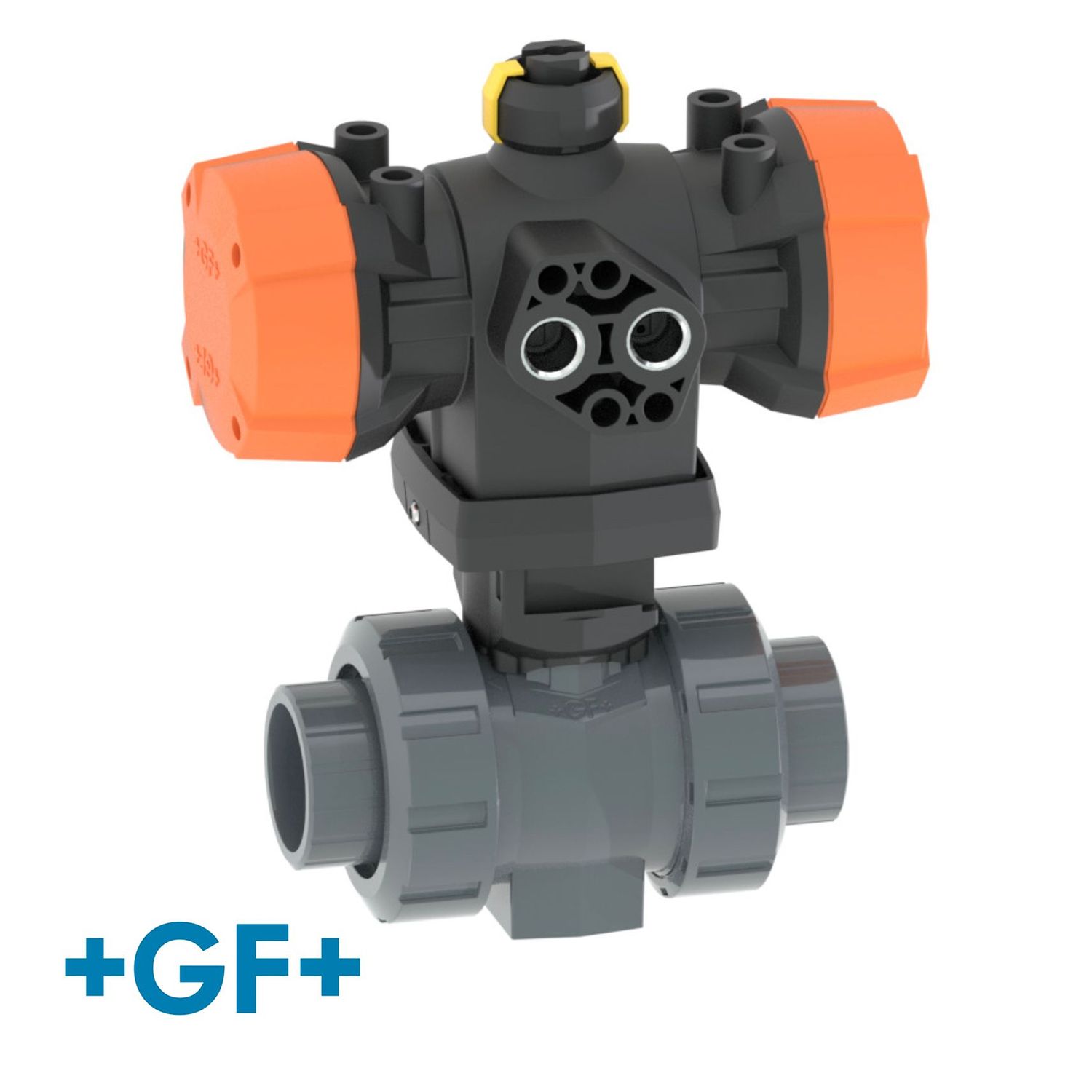

3/8" PVC-U Pneumatically Actuated 546 Ball Valve EPDM/FKM Seals
£651.63
Pre-order
Out of Stock - Pre-ordering available. Ring for lead time.
Product Details
GF air actuated 546 double union ball valve with plain imperial ends for installation to 3/8" NB PVC-U
pipe.
5.6 Bar Control Pressure
Fail-safe to close
kv-value (Δp=1 bar): 70 l/pm
- Control pressure supply through integrated NAMUR interface according VDI/VDE 3845
- Full plastic solution (actuator housing made of PP-GF)
- Visual position indicator

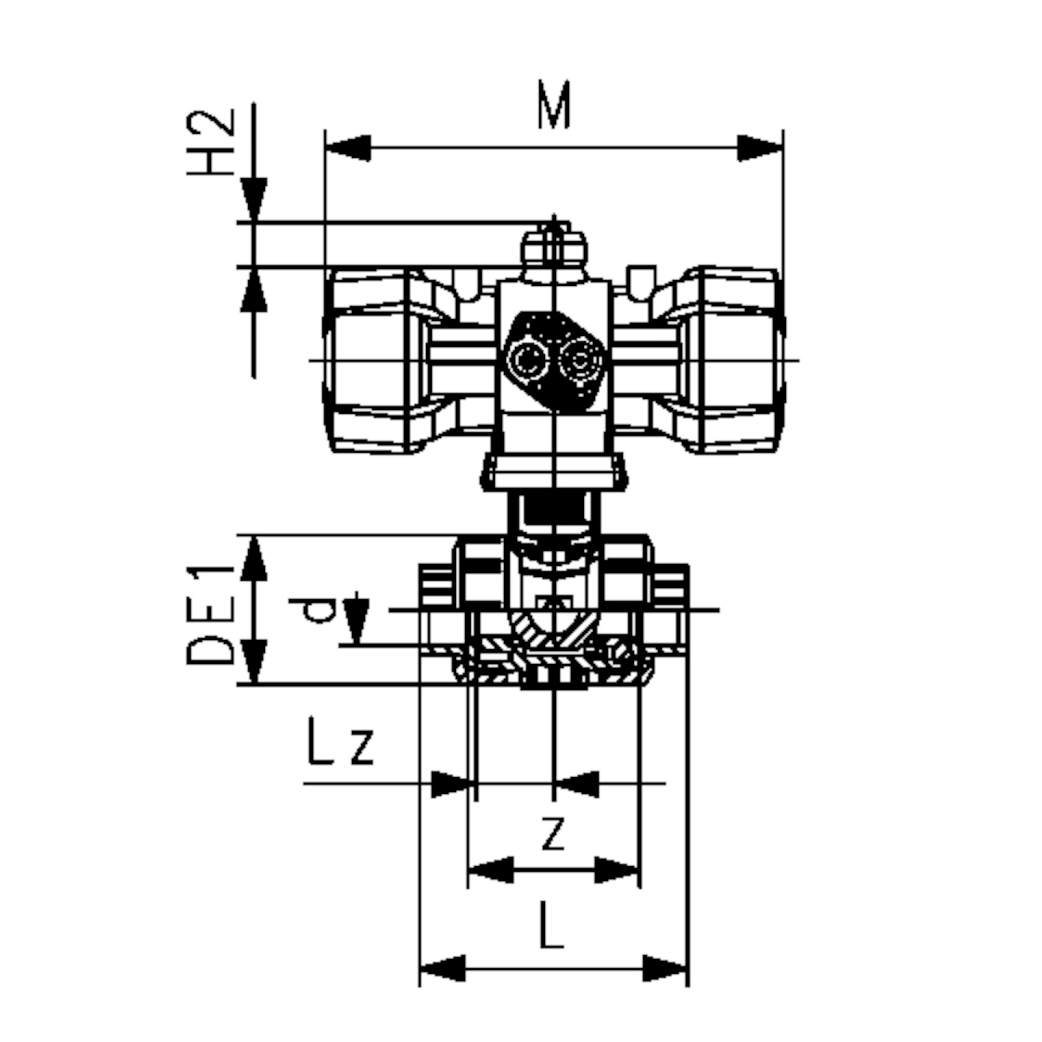

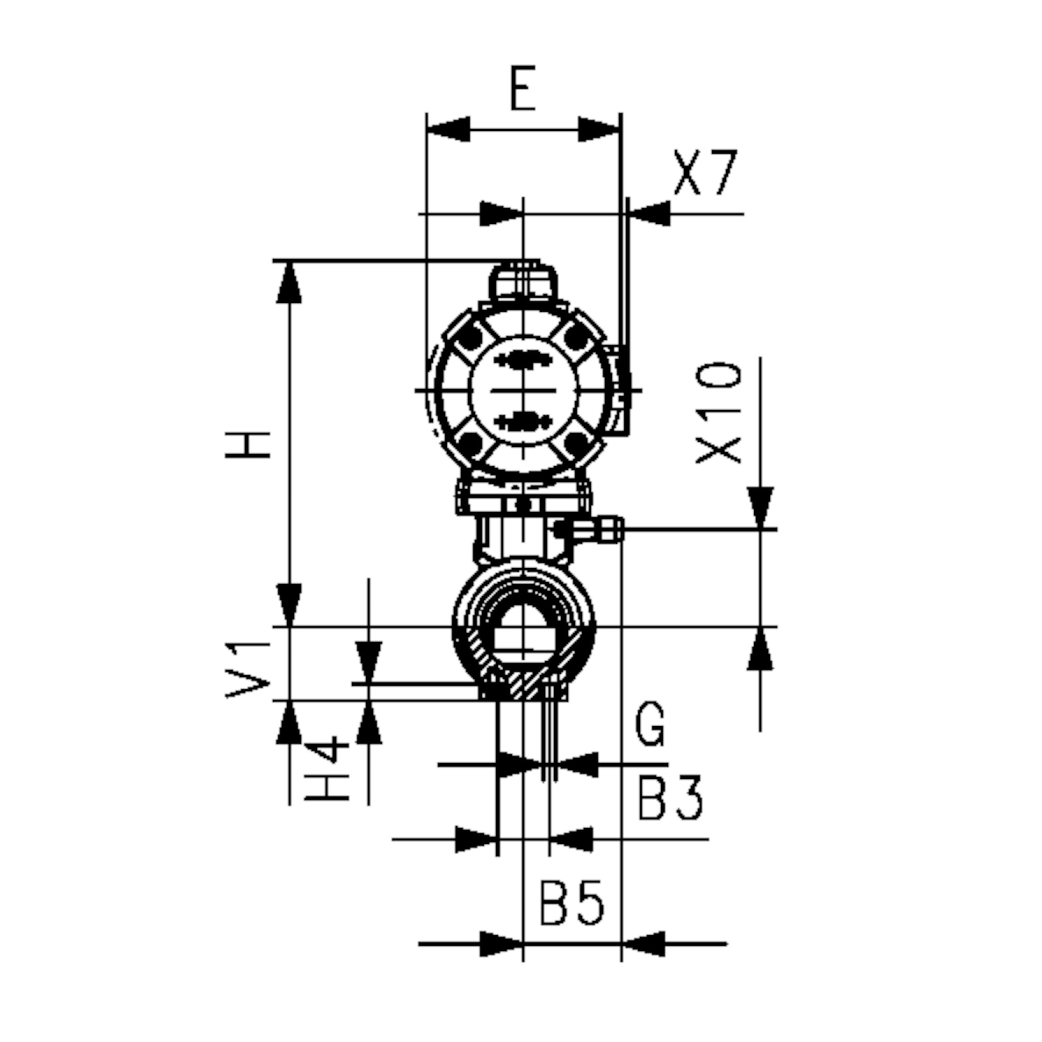

Dimensions
 |
d | 16mm |
| Actuator | PPA08 | |
| B3 | 25mm | |
| B5 | 16.2mm | |
| da2 | 33mm | |
| DE1 | 50mm | |
 |
E | 74mm |
| G | M6 | |
| G1 | M5 | |
| H | 155mm | |
| H2 | 20mm | |
| H4 | 12mm | |
| L | 92mm | |
 |
M | 159mm |
| V1 | 27mm | |
| X5 | 80mm | |
| X6 | 30mm | |
| X7 | 43mm | |
| X10 | 38mm | |
| z | 64mm |
| Lead times: Currently 2 to 6 weeks. Please telephone 0161 241 0553 for a more accurate indication. |
