2"- 63mm SAFI Flanged PVDF Ball Valve with FPM Seals
£890.87
Pre-order
Out of Stock - Pre-ordering available. Ring for lead time.
Product Details
This flanged compact ball valve has a 2 piece construction, limiting interfaces for an optimal sealing. The valve is constructed with solid integrated moulded flanges for easy installation. Moulded sealing rings on flange face help prevent deformation of gasket and provide optimum sealing performance.
Pressure Rating:
16 Bar
Operating Temperature Range:-20°C to +120°C
Flange Drilling Standards:
PN10/16 or ASA 150

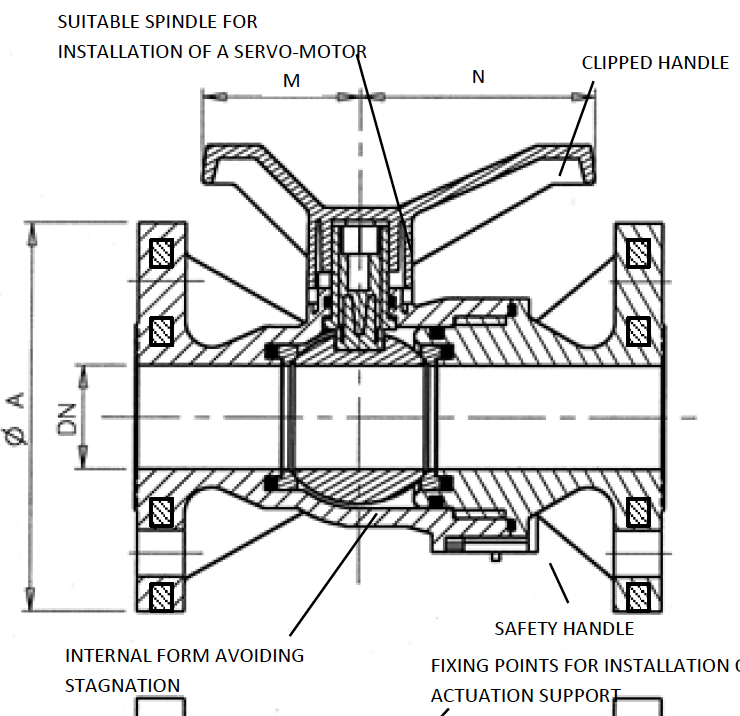

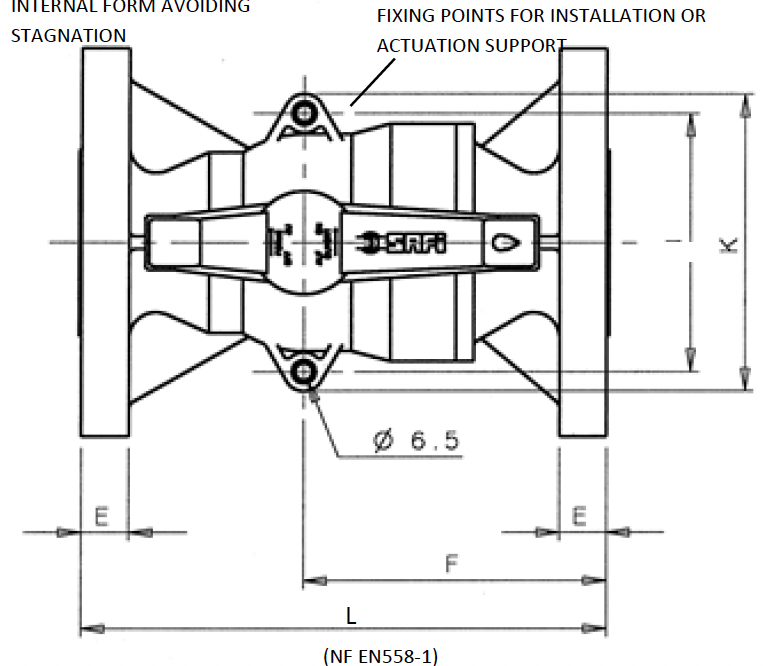

Dimensions

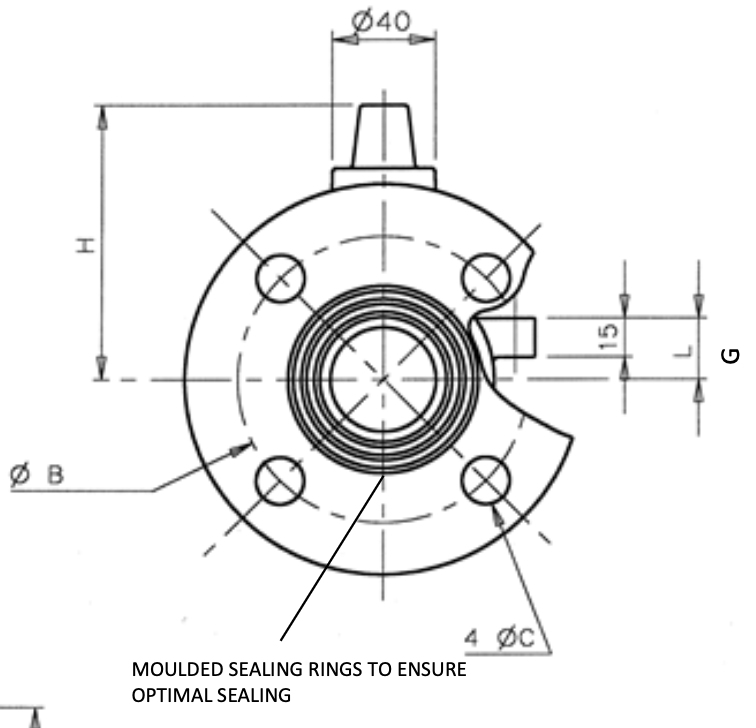

The pitch circle diameter (Dia. B) and bolt hole diameter (Dia. C) of the flange are dependant on your chosen flange standard. All other dimensions are the same regardless of which flange standard is chosen.
| PN10/16 | ASA 150 |  |
|
| Dia. B | 125mm | 120.6mm | |
| Dia. C | 18mm | 19mm | |
| DN | 50 | ||
| Dia. A | 165mm | ||
| E | 20mm |  |
|
| F | 131mm | ||
| G | 28.5mm | ||
| H | 111mm | ||
| J | 112mm | ||
| K | 127mm |  |
|
| L | 230mm | ||
| M | 60mm | ||
| N | 90mm | ||
