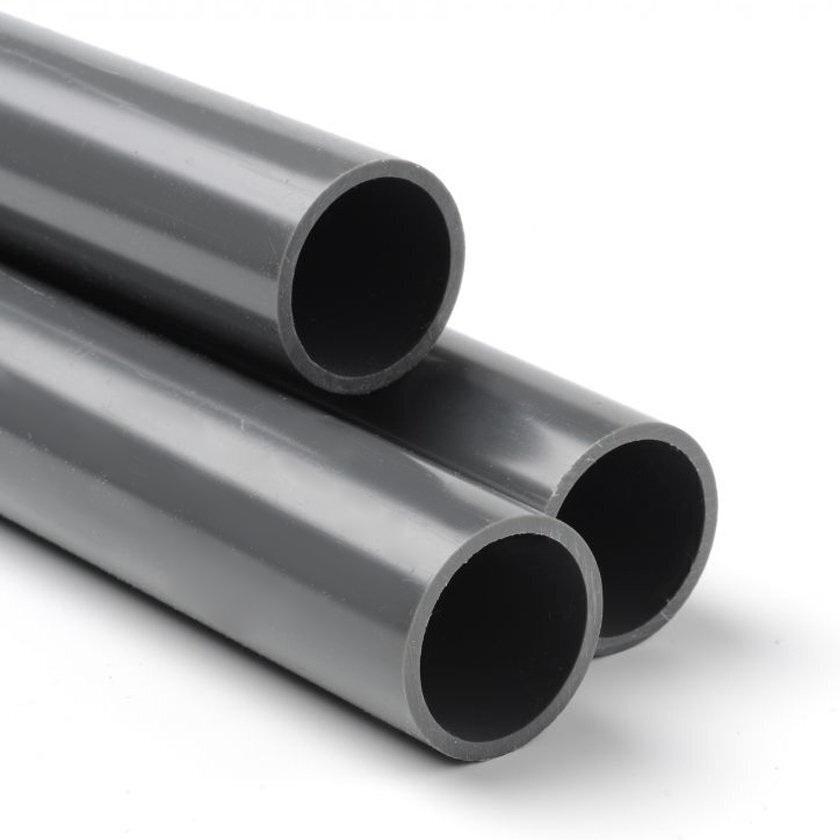

• Imperial Inch (In) • Rigid uPVC Plastic Material • 12 Bar • Available upto 6m
Average Wall Thickness: 4.0mm | Outside Diameter: 21.4mm | 12.0 Bar Pressure Rating Designed to be used with 1/2" PVC-U Pressure Pipe and Fittings.
WRAS Approve
d : Any water fitting, which when installed, will carry or receive water from the public mains water supply in the UK, must comply with the Water Supply (Water Fittings) Regulations or Scottish Byelaws. These require that a water fitting should not cause waste, misuse, undue consumption or contamination of the water supply and must be ‘of an appropriate quality and standard’.
Thermal Properties
PVC-U shows very good characteristics in the temperature range from 0 to 60 Degrees. At lower temperatures the impact strength drops considerably.
Please note:
Small-diameter pipe up to 2" / 63mm may not be as rigid as larger pipe, particularly when supplied in single full lengths.
Due to the way carriers handle long lengths of pipe, there is an increased risk of transit damage or temporary bowing and waviness. Where practical, we recommend having the pipe cut into shorter lengths, as this can significantly reduce these risks.
We do not charge for this cutting service.
For further information about pipes & fittings please click on our Tech Talk
Although the thickest wall of all UPVC pipe classes, Class T pipe is designed to have a thread applied to the pipe length, which scores away at the pipe wall. Therefore the operating pressure for class T pipe is 12 Bar.
